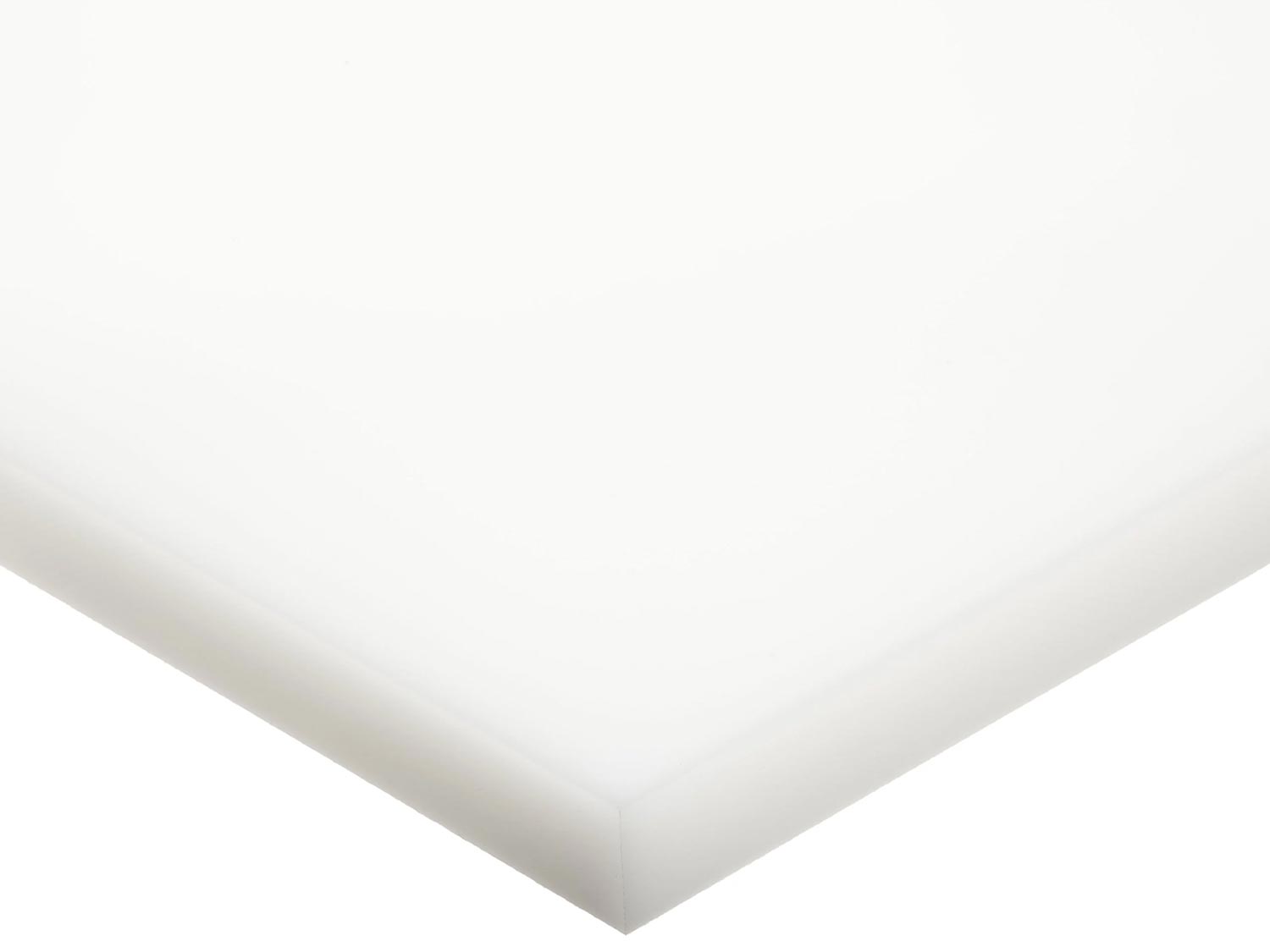

UHMW Sheet - Natural Virgin



UHMW Overview
What is UHMW?

UHMW, also called UHMW-PE (Ultra High Molecular Weight Polyethylene), is a type of thermoplastic material that is lightweight, high-strength, and has a low coefficient of friction and superior abrasion resistance. UHMW is often used in the manufacturing of food processing equipment, conveyor systems, medical devices, and other industrial applications. UHMW is used as a substitute for metal in many industrial applications due to its superior strength, low friction, and chemical resistance. It can also be used as a protective layer on conveyors, gears, and other moving parts to reduce wear and tear. UHMW is used in the food industry, as it is FDA approved and can withstand high temperatures.



UHMW Resources & PDFs
Customers Also Asked:
What is UHMW plastic used for?

UHMW is used for conveyor wear strips, bearings, pipe, snowmobile track sprockets, and other applications that require a balance of abrasion resistance and impact strength with a low coefficient of friction. Virgin UHMW can commonly be found in food applications such as food containers because the material is nontoxic and has low moisture absorption.

Is UHMW and HDPE the same?

UHMW and HDPE are different semi-crystalline plastics that share certain properties. UHMW and HDPE both have high impact strength and abrasion resistance. However, UHMW has a very high molecular weight due to its long polymer chains whereas HDPE has a high strength-to-density ratio.

Is UHMW a hard or soft plastic?

UHMW is an extremely hard and tough plastic that features high abrasion and wear resistance. It has low moisture absorption and a light weight. Part of UHMW's toughness comes from the plastic's extremely organized molecular structure.

Is HDPE stronger than UHMW?

UHMW is considered slightly stronger than HDPE due to its higher tensile strength and increased density. However, both UHMW and HDPE are easy to machine and have great impact resistance.



General Properties1 of UHMW
Property
Unit
Value
Specific Gravity
g/cc
1.45
Water Absorption @ 24 hrs.
%
0.01
Hardness
Shore D
D64
Izod Impact, Notched
ft-lbs/in.
18
Tensile Strength
psi
2800-3100
Flexural Modulus
ksi
61-110
Compressive Strength
psi
3600
Compressive Modulus
ksi
84
Elongation at Break
%
125
Coefficient of Friction
---
0.14
Maximum Service Temperature
°F
180
Melting Point
°F
260
1The values listed are typical and are meant only as a guide to aid in design. Field testing is always recommended to determine exact values for each application.
Virgin UHMW is a relatively low cost abrasion, impact, and chemically resistant material.
UHMW Sheet - Natural Virgin
Black UHMW sheet, virgin grade, for general purpose use.
UHMW Sheet - Black Virgin
Reprocessed UHMW is recommended for less demanding applications versus virgin.

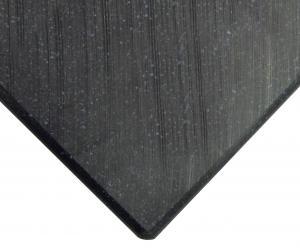

UHMW Sheet - Black Reprocessed
Reprocessed UHMW is recommended for less demanding applications versus virgin.
UHMW Sheet - Green Reprocessed
UHMW-PE anti-static can move products more safely in potentially volatile environments.
UHMW Sheet - Anti-Static

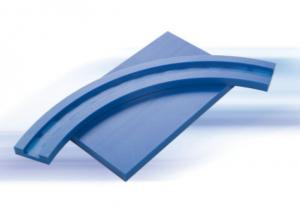

Superior Use in Protecting Chain Guides, Sliding Strips, Rollers and Corner Wear Bends
UHMW TivarĀ® HPV Low Friction Sliding Material
Tivar® HOT maintains key performance properties in an extended temperature range.
TIVAR H.O.T. UHMW SHEET
Premium lining material for bulk material handling.
TivarĀ® 88 UHMW Sheet
Tivar® DrySlide is an anti-static plastic sheet with self-lubricating properties.
Tivar<sup>®</sup> DrySlide ESD Plastic
IPX 2000 is an advanced, engineered polyethylene that has greater benefits than standard UHMW.
UHMW IPX 2000 Sheet - Advanced Wear Technology
50ft Rolls of Adhesive-Backed Anti-Static UV Stable Pressure-Sensitive Tape.
Durasurf ASC-UV Anti-Static UV Stable Pressure-Sensitive Tape
Non-Adhesive UHMW-PE Wear Strip Rolls.
DuraSurf UHMW Wear Strips
50ft Rolls of Easy to Apply (ETA) Adhesive Backed UHMW Tape.
DuraSurf ETA UHMW Pressure-Sensitive Tape
Ideal solution for conveying applications where long lengths with no seams are preferred.
UHMW Natural King Coil
Ideal solution for conveying applications where long lengths with no seams are preferred.
UHMW Reprocessed King Coil
Rustication strips for smooth and even architectural reveals.
UHMW RUSTICATION REVEAL STRIPS



Virgin UHMW is a relatively low cost abrasion, impact, and chemically resistant material.
UHMW Rod - Natural Virgin
A FDA compliant blue colored UHMW rod.
FDA Compliant Blue UHMW Rod
Reprocessed UHMW is recommended for less demanding applications versus virgin.
UHMW Rod - Black Reprocessed
Virgin grade black UHMW rod stock has good wear, chemical, & impact resistances.
UHMW Black Rod - Virgin UHMW Polyethylene
UHMW is a relatively low cost abrasion, impact, and chemically resistant material.
UHMW Tube - Natural



Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Snap-On-Epp802
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Snap-On-Epp803
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Snap-On-Epp824
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Snap-On-Epp851
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural C Channel-Epp702
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural C Channel-Epp703
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Full-Round-Epp351
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Full-Round-Epp352
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Half Round-Epp301
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Half Round-Epp302
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural U Channel-Epp103
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural U Channel-Epp104
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural U Channel-Epp104
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Angle-Ep202
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Angle-Ep203
Fast economical way to turn an abrasive metal component into a long wearing, non marring component.
UHMW Natural Angle-Ep208



Includes a 6x6" sample of ABS, Noryl, Polycarbonate, and UHMW.
Thermoforming Material Sample Pack
Includes a 6x6" sample of Acetal, Nylon, UHMW, and a 3x3" sample of PTFE.
Friction Resistance Material Sample Pack
6x6" sample of ABS, Acetal, Acrylic, HDPE, PVC, UHMW, and 3x3" sample of PTFE.
Machinable Plastics Material Sample Pack
6x6" sample of ABS, Acetal, Acrylic, Nylon, PVC, UHMW, PET, and a 3x3" sample of PTFE.
Thermoplastics Material Sample Pack



Plastic cutting bits by Onsrud are an industry standard in quality.
Onsrud High Speed Steel Two Flute Fractional Drill Bit
Plastic cutting bits by Onsrud are an industry standard in quality.
Onsrud - Plastic Router Bits
Saw blades that offer premium performance on hard and soft plastics.
No-Melt Plastic Saw Blades
